Introduction

As organizations scale their use of Microsoft Azure, the number of deployed resources grows rapidly. Without structure and naming discipline, even a well-designed integration platform can quickly become difficult to manage.

In a Hybrid Integration Platform (HIP) built with Azure Integration Services, you typically work with a controlled and repeatable set of resources. Still, consistent naming and logical structuring are essential.

Over the past few years, I’ve refined a naming convention approach while implementing enterprise integration solutions which include:

• Logic Apps Standard
• Azure Functions
• Service Bus
• API Management
• Azure Data Factory
• Key Vault
• Storage Accounts
• Networking components

This article outlines the conventions that have proven effective in real-world projects. These conventions are not mandatory standards; they are based on practical experience and lessons learned across multiple implementations.

Why naming matters more in
Azure

A strong naming convention in Azure is not only cosmetic, it supports your architecture. It improves:

• Readability across teams
• Maintainability at scale
• Automation (IaC & DevOps pipelines)
• RBAC clarity
• Operational support

In cloud environments, naming becomes part of governance.

Architectural context

The integration architecture I typically use,  follows a structured pattern inspired by traditional enterprise integration (similar to patterns used in on-premises integration platforms like BizTalk Server):

• Clear separation of receive, process/orchestrate, and send
• Decoupling via messaging
• Guaranteed delivery
• Resilience and reliability
• Support for multiple exchange patterns

Within this model:

• Some Azure resources are shared across integrations (platform-level)
• Others are integration-specific
• Cost considerations (e.g., Service Bus Premium namespaces) influence design

Naming only makes sense within that architectural context.

The core naming formula

All major Azure resources follow this structure:

<resource>-<org>-<workload>-<integration>-<optional-context>-<environment>

Segments explained

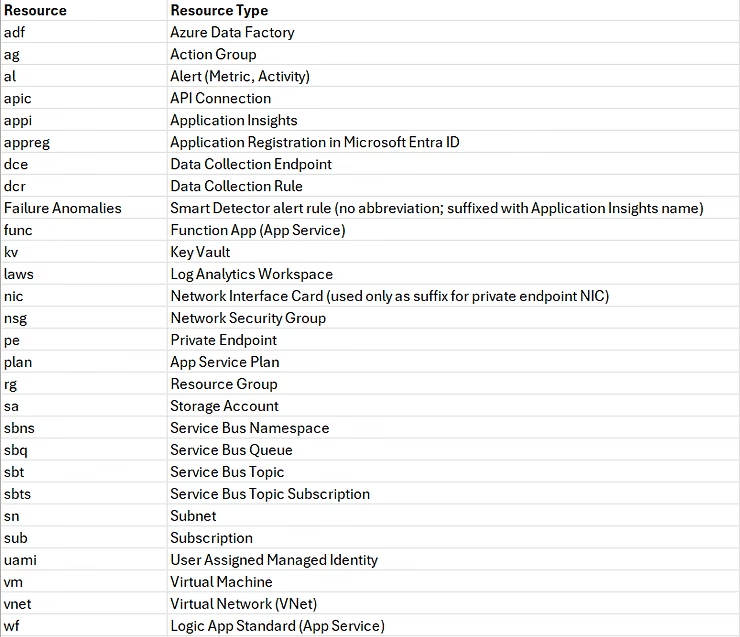

1) Resource. Abbreviation indicating the resource type (e.g., wf, sbns, kv, sa, nsg, etc.)

2) Organization. Organization abbreviation (max. 3 characters). Example: sah.

• Resource Groups use the full organization name (e.g. sahin)
• All other resources use the 3-character abbreviation (e.g. sah)

3) Workload. In my case:

• Full name: hybrid-integration-platform
• Short name: hip

But this might also be a division or department within an organization.

Subscriptions and Resource Groups use the full name. All other underlying resources use the short name.

4) Integration. The unique integration name.
Examples for integration names could be:

• biztalkbankstatements
• sharepointproject
• workdaytimesheet
• simcorpexchangerates
• profitemployees

The integration segment maps to three deployment tiers in the architecture:

• core — platform-wide resources that are shared across all workloads and integrations: Service Bus namespace and API Management. These are not tied to any workload, so the workload segment is omitted entirely and core is used as the integration segment.
• shared — resources that are shared across all integrations within a workload: Logic App Standard hosting plan, shared Function App (it could also be part of an integration), shared Key Vault, Application Insights. These live in the shared resource group.
• <integration name> — resources dedicated to a single integration: the Logic App Standard instance, integration-specific Key Vault, Storage Account, alert rules, etc. Each integration gets its own resource group.

This three-tier split could be visible in both the Azure resource groups and in the repository structure or they could reside in their own repository: a core repository, and workload specific repositories that contain a shared folder, and one integrations folder with sub-folders for each integration.

5) Optional context. Provides additional clarification (e.g., backend, inbound, health, file, etc.)

6) Environment

• d = development
• t = test
• a = acceptance
• p = production

Segment usage summary

Not every resource uses every segment in the same way. Here is the complete breakdown:

Resource type	Org segment	Workload segment
Subscriptions	Full name (e.g. sahin)	Full name (e.g. hybrid-integration-platform)
Resource Groups	Full name (e.g. sahin)	Full name (e.g. hybrid-integration-platform)
Virtual Network	Abbreviation (e.g. sah)	Abbreviation (e.g hip)
Private Endpoints	Abbreviation (e.g. sah)	Full name (e.g. hybrid-integration-platform)
Service Bus Namespace & APIM	Abbreviation (e.g. sah)	Omitted — these are core platform resources
All other resources	Abbreviation (e.g. sah)	Abbreviation (e.g. hip)

Foundational naming rules

1) Lowercase only. Even when Azure allows uppercase, consistency wins.

2) Hyphen-separated segments. Improves readability and scanning.

⚠ Exception: Storage Accounts: Do not support hyphens. Therefore, it will use this approach:

sa<org abbr><workload abbr><integration-truncated-to-fit><environment>

Example:

sasahhipsomeintegrationt

Resource naming examples

Below are some examples from the platform.

Subscription

sub-<organization name>-<workload name>-<environment>

Example:

sub-sahin-hybrid-integration-platform-p
sub-nothwind-humanresources-p

Subscription name may subject to company standards. Most important to keep in mind that you should strive to have the full workload name and environment letter in there

Resource Group

Platform RG:  rg-<organization name>-core/network-<environment>
Workload RG:  rg-<organization name>-<workload name>-<integration>-<environment>

Examples:

rg-sahin-network-p
rg-sahin-core-p
rg-sahin-hybrid-integration-platform-shared-p
rg-sahin-hybrid-integration-platform-crmintegration-t

Virtual Network

vnet-<org abbr>-<workload abbr>-<environment>

Example:

vnet-sah-hip-a
vnet-sah-core-p

Subnet

sn-<org abbr>-<workload abbr>-<integration>-<optional: resource>-<type>-<environment>
=> where <type> indicates inbound, outbound, backend traffic directions.

Examples:

sn-sah-hip-shared-wf-outbound-t
sn-sah-hip-shared-backend-o
sn-sah-hip-core-servicebus-o
sn-sah-hip-<integration>-inbound-t
sn-sah-hip-<integration>-backend-a

Network Security Group (NSG)

nsg-<org abbr>-<workload abbr>-<integration>-<optional:resource>-<type>-<environment>

Examples:

nsg-sah-hip-shared-wf-outbound-t
nsg-sah-hip-shared-backend-o
nsg-sah-hip-<integration>-backend-a

NSG Security Rules

<action>-<source>-to-<destination>-<direction>-<protocol>-port-<port/range>

Examples:

allow-internet-to-vnet-inbound-tcp-port-80
deny-vnet-to-storage-outbound-tcp-port-445-447
deny-any-to-any-inbound-any-port-32268

Private Endpoint

pe-<resource>-<org abbr>-<workload abbr>-<integration>-<environment>
=> resource type comes first (right after pe-), then org abbreviation, then full workload name

Examples:

pe-kv-sah-hip-shared-p
pe-func-sah-hip-shared-p
pe-wf-sah-hip-<integration>-a
pe-namespace-sah-hip-core-p

Network Interface (auto-generated)

pe-<resource>-<org abbr>-<workload abbr>-<integration>-<environment>.nic.<guid>
=> auto-generated by Azure; follows the private endpoint name with a .nic.<guid> suffix

Example:

pe-kv-sah-hip-shared-p.nic.f8c06cd2-9f09-11ee-8c90-0242ac120002

App Service Plan

asp-<org abbr>-<workload abbr>-<integration>-<resource>-<environment>

Examples:

asp-sah-hip-shared-wf-t
asp-sah-hip-shared-func-o

In my case, these plans are shared over integrations and therefore deployed to a shared Resource Group

Supported types:

• wf (workflow – Logic App Standard)
• func (Function App)
• app (Web / API app)

Function App

func-<org abbr>-<workload abbr>-shared-<environment>

Example:

func-sah-hip-shared-a

I used a shared Function app and app service plan. You could also use Inline code for simple requirements with Logic Apps Standard or Inline Functions as part of your Logic Apps Standard or a Function app per integration to isolate or limit exposure of logic

Logic Apps Standard

wf-<org abbr>-<workload abbr>-<integration>-<environment>

Example:

wf-sah-hip-workdaytimesheet-p

The organization abbreviation (segment 2) provides the uniqueness needed for globally-scoped resources.

wf-sah-hip-crmaccounts-t
wf-sah-hip-shared-o

Workflow naming inside Logic Apps (Standard)

I strongly believe a workflow name should explain its purpose without documentation.

Receiver

rcv-<protocol>-<source>-<message>

Example:

rcv-https-unit4erp-invoices
=> receive invoices from unit4erp over https

Processor

prc-<target>-<message>

Example:

prc-isp-invoice
=> process invoice for isp system

Sender

snd-<protocol>-<target>-<message>

Example:

snd-https-crm-account
=> send account to crm over https

Helper

hlp-<protocol>-<system>-<description>

Example:

hlp-https-isp-retrieveaccesstoken
=> helper reachable via https that retrieves an access token for isp

Agent loop

agt-auto-<description>
or agt-conv-<description>

Example:

agt-auto-monitor-secrets
=> autonomous agent workflow that monitors secrets

Clear, predictable and self-documenting!

Artifacts inside Logic Apps Standard: Schemas

<system>.<messagetype>.<extension>

Examples:

unit4erp.invoices.json
simcorp.rates.json
crm.account.xml

Artifacts inside Logic Apps Standard: Maps

<source>.<messagetype>.to.<target>.<messagetype>.<extension>

Example:

timeway.timesheet.to.workday.timesheet.liquid

API Connection

apic-<org abbr>-<workload abbr>-<integration>-<resource>-<environment>

Example:

apic-sah-hip-simcorprates-laws-o

Display names follow lowercase descriptive naming principles

Service Bus

The Service Bus namespace is a platform-wide, core resource. It is shared across all integrations and all workloads. Because it belongs to no specific workload or integration, the workload segment is omitted from its name and core is used as the integration segment. The same principle applies to API Management.

Namespace (globally unique)

sbns-<org abbr>-core-<environment>
=> platform-wide resource; workload segment is omitted, core is the integration segment

Example: (globally unique — the organization abbreviation differentiates namespaces across tenants)

sbns-sah-core-p

Topic

sbt-<source>-out

Examples:

sbt-unit4erp-out
sbt-crm-out
sbt-afas-out

Subscription

sbts-<target>-<messagetype>

Examples:

sbts-sap-customer
sbts-salesforce-opportunity

Subscription filter rule

filter-<target>-<messagetype>

Examples:

filter-sap-customer
filter-salesforce-opportunity

Processing queue

Between receive and process workflows. Gets messages forwarded by subscription.

sbq-<target>-<messagetype>-<source>-prc

Examples:

sbq-sap-customer-dynamics-prc
sbq-salesforce-opportunity-crm-prc

Send queue

Between process and send workflows.

sbq-<target>-<messagetype>-in

Examples:

sbq-sap-customer-in
sbq-salesforce-opportunity-in

Azure Data Factory

Azure Data factory

adf-<org abbr>-<workload abbr>-<integration>-<environment>

Examples:

adf-sah-hip-shared-t
adf-sah-hip-someintegration-a

Shared Integration Runtime (SHIR)

adf-shir-<org abbr>-<workload abbr>-<integration>-<environment>

Example:

adf-shir-sah-hip-shared-o

Linked Service

adf_ls_<resource>_<subresource>_<description>_<environment>

Does not allow hyphens

Example:

adf_ls_sa_blob_somedepartment_o

Pipeline

adf-pl-<source>-<message>-to-<target>

Example:

adf-pl-crm-user-to-sqldb

Dataset

adf-ds-<datastore>-<format>-<message>

Example:

adf-ds-abs-json-accounts

Datastore abbreviation examples:

• afs (Azure File Share)
• abs (Azure Blob Storage)
• adb (Azure Database)
• ats (Azure Table Storage)
• ftp, sftp, etc

Dataflow

adf-df-<source>-<message>-to-<target>

Example:

adf-df-crm-accounts-to-sqldb

Key Vault

kv-<org abbr>-<workload abbr>-<integration>-<environment>

Examples:

kv-sah-hip-shared-t
kv-sah-hip-northwindshupsieflupsie-o

Key Vault names are limited to 24 characters and must be globally unique. If the integration name makes the name too long, shorten it. The organization abbreviation provides the global uniqueness needed.

Key Vault Secrets

<system>-<endpoint>-<proprty or context>

Examples:

unit4erp-api-username
profit-api-token
northwind-apim-clientid
pggm-apim-clientsecret

Storage Account & Claim-Check pattern

In my architecture, I apply the claim-check pattern using Service Bus. The message payload resides in Blob Storage. Only a reference goes through Service Bus.

There are two decoupling points:

• Between receiver and processor
• Between processor and sender

Blob naming:

<correlation id>_<rcv/prc>_<source/target>_<entity>_<datetime>.<ext>

Debatched message naming:

<correlation id>_<index>_<rcv>_<source>_<entity>_<datetime>.<ext>

This allows:

• Traceability
• Correlation across workflows
• Operational debugging

Monitoring & Observability

Metric & Activity log alerts

al-<org abbr>-<workload abbr>-<integration>-<resource>-<optional>-<environment>

Examples:

al-sah-hip-northwindshupsieflupsie-wf-health-t
al-sah-hip-crmaccounts-sa-actions-t

Application Insights

appi-<org abbr>-<workload abbr>-shared-<optional:resource>-<environment>

Example:

appi-sah-hip-shared-asp-a

Smart Detector Alert Rule

Failure Anomalies - appi-<org abbr>-<workload abbr>-shared-<optional:resource>-<environment>

Examples:

Failure Anomalies - appi-sah-hip-shared-asp-t
Failure Anomalies - appi-sah-hip-shared-asp-a

Action Group

ag-<org abbr>-<workload abbr>-<integration>-<optional-description>-<environment>

Example:

ag-sah-hip-shared-hip-p

Log Analytics Workspace

laws-<org abbr>-<workload abbr>-shared-<environment>

Example:

laws-sah-hip-shared-t

Final thoughts

I hope this article on naming conventions for Azure Integration Services will help others achieve more consistent resource naming.

I do need to mention that this version has been developed based on over two years of experience working with my current client. Prior to that, I used a different variant, which was specifically tailored to the needs of the client I was supporting at the time.

When establishing a naming convention, it is essential to strive for consistent segmentation, as well as improved readability and maintainability.

Nevertheless, I am personally satisfied with the version I have developed. I would be very interested to hear your thoughts as well.
